FGD3N60UNDF Discrete Semiconductor Products IGBT NPT 600V 6 A 60W Surface Mount TO-252AA

Name: FGD3N60UNDF Discrete Semiconductor Products IGBT NPT 600V 6 A 60W Surface Mount TO252AA
Brand: onsemi
Price: 1 USD

Brand Name : onsemi

Model Number : FGD3N60UNDF

Certification : RoHS

Place of Origin : United States

MOQ : 2500PCS

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 2.5K PCS

Delivery Time : 2-3 DAYS

Packaging Details : 2500PCS/Tape

Manufacturer : onsemi

Category : Single IGBTs

Product Number : FGD3N60UNDF

IGBT Type : NPT

Voltage - Collector Emitter Breakdown (Max) : 600 V

Current - Collector (Ic) (Max) : 6A

Current - Collector Pulsed (Icm) : 9A

Vce(on) (Max) @ Vge, Ic : 2.52V @ 15V, 3A

Power - Max : 60W

Switching Energy : 52µJ (on), 30µJ (off)

Input Type : Standard

Gate Charge : 1.6 nC

Td (on/off) @ 25°C : 5.5ns/22ns

Test Condition : 400V, 3A, 10Ohm, 15V

Reverse Recovery Time (trr) : 21 ns

Operating Temperature : -55°C ~ 150°C (TJ)

Mounting Type : Surface Mount

Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63

Supplier Device Package : TO-252AA

Contact Now

FGD3N60UNDF IGBT NPT 600 V 6 A 60 W Surface Mount TO-252AA

Datasheet:FGD3N60UNDF

Category	Single IGBTs
Mfr	onsemi
Product Status	Obsolete
IGBT Type	NPT
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	6 A
Current - Collector Pulsed (Icm)	9 A
Vce(on) (Max) @ Vge, Ic	2.52V @ 15V, 3A
Power - Max	60 W
Switching Energy	52µJ (on), 30µJ (off)
Input Type	Standard
Gate Charge	1.6 nC
Td (on/off) @ 25°C	5.5ns/22ns
Test Condition	400V, 3A, 10Ohm, 15V
Reverse Recovery Time (trr)	21 ns
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package	TO-252AA
Base Product Number	FGD3N60

Additional Resources

ATTRIBUTE	DESCRIPTION
Other Names	FGD3N60UNDFCT
	FGD3N60UNDFTR
	FGD3N60UNDFDKR
Standard Package	2500

Data Picture:https://www.onsemi.com/pdf/datasheet/fgd3n60undf-d.pdf
FGD3N60UNDF Discrete Semiconductor Products IGBT NPT 600V 6 A 60W Surface Mount TO-252AA

Product Tags:

FGD3N60UNDF

Discrete Semiconductor Products

diode and transistor

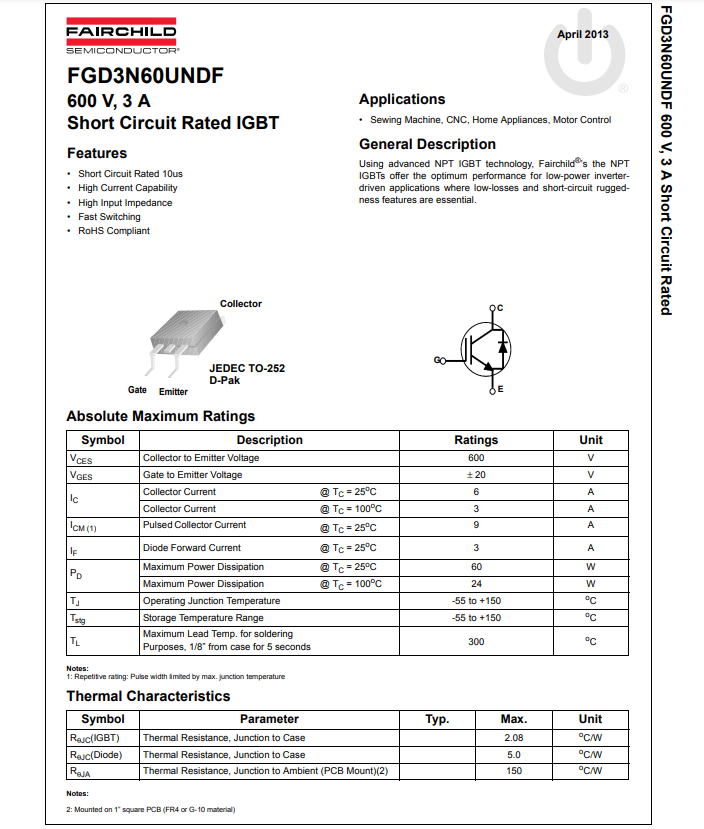

FGD3N60UNDF Discrete Semiconductor Products IGBT NPT 600V 6 A 60W Surface Mount TO-252AA Images
